Arthur Harris brushed stainless steel T-Pulls

Arthur Harris T-Pulls brushed stainless steel finish
Bold, strong looking, solid stainless steel T-Pulls. The long handles from Arthur Harris are European Railing style handles. Those will have 2 or more legs. When we refer to a T-Pull, it will have only one leg. And it looks like a capital T from the side.

This is one way to get a shorter handle. When you have a handle with two legs, it has to have a minimum length to it in order to accommodate the two legs without looking weird. The T-Pulls can be made a bit shorter in length and look really good. They come in the same six diameter sizes as all the other Arthur Harris handles. The standoff (leg) is also 1" tall for a consistency with the longer bar pulls. The heights will be equal also across the six bar diameters.

T-Pulls can be mounted in a horizontal or vertical fashion. On upper cabinet doors, we would mount them vertically. On drawer fronts, horizontally would look better. On base cabinets, well, depending upon which corner of your doors you mount them upon, you could go either way, but the general consensus would be to align their length with the longest measurements of the doors. That usually looks more aesthetically pleasing.

The first grouping of product photos below are the Standard sizes. Arthur Harris makes a standard length for each bar diameter and a distinct part number is assigned. We will show info and pricing on the custom sizes after those and explain more lower on the page.

All T-Pulls are solid stainless steel brought to a brushed finish. Each T-Pull has a single #8x32 tap cut directly into the standoff for the BF, BS, and BJ series handles. On the larger BL, BN, and BD series, those will have a 1/4"x20 tap, it is a bigger bolt for more strength. One inch long screws are supplied with all T-Pulls. If you need longer, you can find #8x32 machine screws or 1/4x20 screws at most any hardware store.

If you want to use the T-Pulls as back to back mounts, no special alteration is needed. You can use a through-bolt between them and just turn them onto the bolt. With a handle with two legs, you just cannot spin both legs onto a through bolt. But with a T-pull or single screw cabinet knob, you can attach hardware like this back to back by using headless screws also called a through-bolt.

The standard size T-Pulls can be added to our shopping cart. But if you are considering some with other Arthur Harris products, you can include their part numbers and quantities on our Arthur Harris ordering and quotation form. This would make it easier for your overall order in mixing various products. The T-Pulls are also considered in our Arthur Harris volume discounts mentioned on our Arthur Harris product summary page. Our shopping cart is not so sophisticated to calcualte the discounts, this is something we do when we process the order when it meets the quantity discounts. Also know that our shopping cart does not charge your credit card on the spot. Orders are reviewed by us first, and then we process them and update you with your receipt/invoice. Rest assured, when you meet the volume discount levels, they will be applied. The shopping cart is just for the ease of ordering and sending your information to us. The custom sized T-Pulls however are a bit trickier if attempting to use the shopping cart. More will be explained below.


MADE in the USA

The Standard Size T-Pulls:

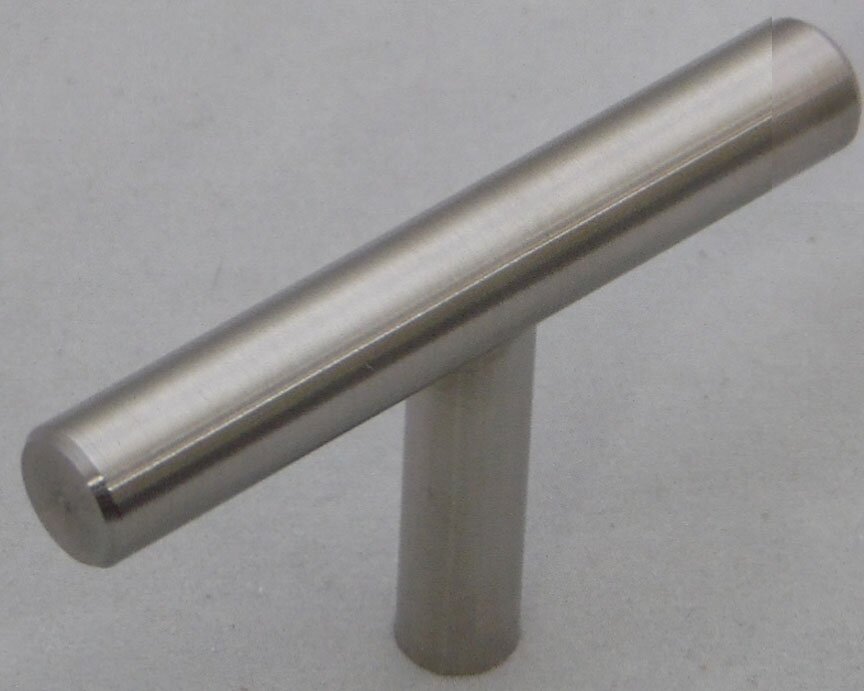

ARH-BF.T250
Manufacturer: Arthur Harris
Arthur Harris BF.T250 Stainless Steel T-pull 2-1/2" OL, 3/8" bar dia., 5/16" leg dia., 1-3/8" overall height, standard BF T-pull size
$30.00
Add
ARH-BS.T250
Manufacturer: Arthur Harris
Arthur Harris BS.T250 Stainless Steel T-pull 2-1/2" OL, 1/2" bar dia., 3/8" leg dia., 1-1/2" overall height, standard BS T-pull size
$27.00
Add

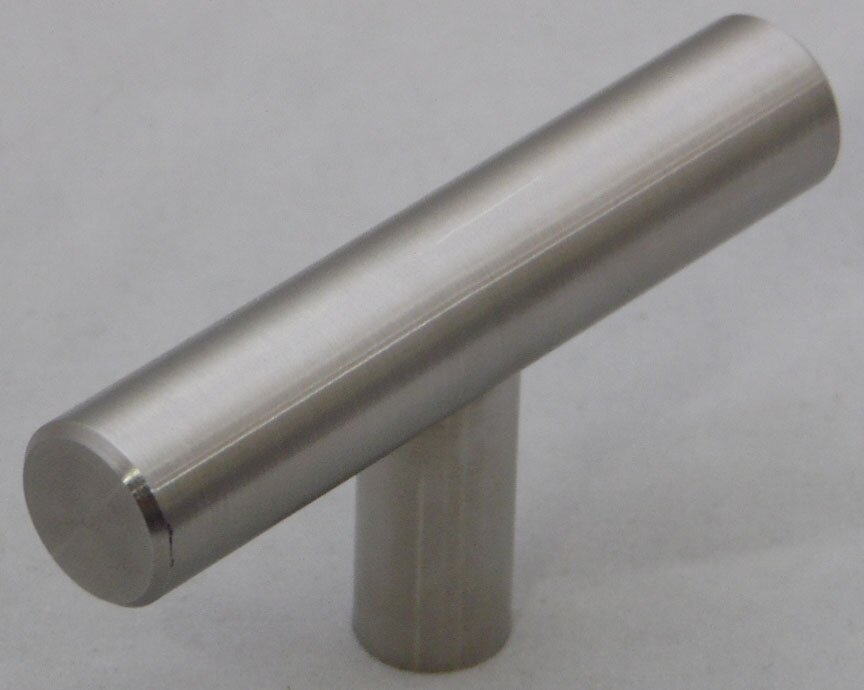

ARH-BJ.T300
Manufacturer: Arthur Harris
Arthur Harris BJ.T300 Stainless Steel T-pull 3" OL, 5/8" bar dia., 1/2" leg dia., 1-5/8" overall height, standard BJ T-pull size
$36.00
Add
ARH-BL.T400
Manufacturer: Arthur Harris
Arthur Harris BL.T400 Stainless Steel T-pull 4" OL, 3/4" bar dia., 5/8" leg dia., 1-3/4" overall height, standard BL T-pull size
$77.76
Add
ARH-BN.T500
Manufacturer: Arthur Harris
Arthur Harris BN.T500 Stainless Steel T-pull 5" OL, 7/8" bar dia., 5/8" leg dia., 1-7/8" overall height, standard BN T-pull size
$126.72
Add
ARH-BD.T500
Manufacturer: Arthur Harris
Arthur Harris BD.T500 Stainless Steel T-pull 5" OL, 1" bar dia., 3/4" leg dia., 2" overall height, standard BD T-pull size
$142.56
Add

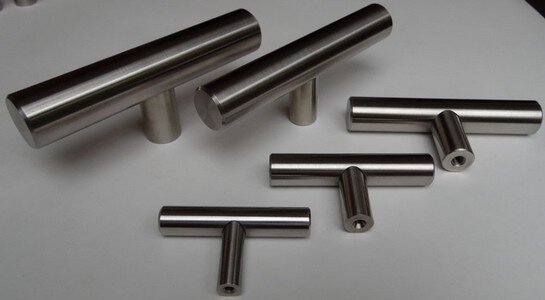

All of the above might look like they are the same size, this is why we opened the page with a group photo to show the various bar diameters.

Now in regard to the custom sized T-Pulls. The bar length can be made to the sixteenth of an inch for the range allowed for each bar diameter. T-Pulls cannot be made too long. The longer they are, the easier it would be to twist them free if you turn your hand while pulling on them. Most of the time, you are pulling open an easily hinged cabinet door. But if you are pulling on a large drawer front filled with some heavy pots and pans, a drawer could have over 50 pounds in it. And when tugging on the pull, there is a chance of turning it when a longer length provides a greater leverage. So each bar diameter has a maximum length that it is allowed to be made in. Additionally, each size has a minimum starting length. All of those measurements will be outlined below.

The custom T-Pulls can be ordered through our shopping cart, but in the comments field of the cart, you will need to specify the length(s) you need there. Pricing is the same for the entire length allowance. If you like, you can order them also on the Arthur Harris ordering and quotation form. On the form you can get a bit more custom such as changing the height of the standoff also. The form is not interactive. Your submission comes to us, we can calculate it first, and get back to you. Changes in standoff height could result in extra charges if the changes are more extreme. We do not mind quoting orders in advance of finalizing them. We do want you to know if something becomes more expensive due to additional customizing. Since the bar rail handles can have custom standoff heights, the T-pulls can too in order to coincide with orders containing both T-Pulls and the longer bar pulls.

Here are the part numbers to use and pricing for the custom sized T-Pulls

ARH-BF.T.custom
Manufacturer: Arthur Harris
Arthur Harris BF.T.custom (BF series) 3/8'' bar dia., allowed range 2" to 5", Stainless Steel T-pull bar length =
$41.38
Add
ARH-BS.T.custom
Manufacturer: Arthur Harris
Arthur Harris BS.T.custom (BS series) 1/2'' bar dia., allowed range 2" to 5", Stainless Steel T-pull bar length =
$41.14
Add
ARH-BJ.T.custom
Manufacturer: Arthur Harris
Arthur Harris BJ.T.custom (BJ series) 5/8'' bar dia., allowed range 2" to 5", Stainless Steel T-pull bar length =
$55.04
Add
ARH-BL.T.custom
Manufacturer: Arthur Harris
Arthur Harris BL.T.custom (BL series) 3/4'' bar dia., allowed range 3" to 8", Stainless Steel T-pull bar length =
$108.91
Add
ARH-BN.T.custom
Manufacturer: Arthur Harris
Arthur Harris BN.T.custom (BN series) 7/8'' bar dia., allowed range 4" to 8", Stainless Steel T-pull bar length =
$121.02
Add
ARH-BD.T.custom
Manufacturer: Arthur Harris
Arthur Harris BD.T.custom (BD series) 1'' bar dia., allowed range 4" to 8", Stainless Steel T-pull bar length =
$136.14
Add
