Estar LED Surface Mount Rings

Click or Tap the orange menu button to view all Estar LED Tech page links

LED Lights Surface Mount Rings

Surface mount rings are optional. They are not the same thing as the Trim Ring shown on the LED lights page. The trim ring is the decorative front of the light. The surface mount ring would be the SIDES of the light when opting not to recess mount the light. The light will stick down from the surface approx. .95", thus 1" drop from the surface when assembled: surface mount ring + light + trim ring. On some applications that you cannot drill into, such as thin cabinet bottoms, glass or metal shelves, or when you just want a surface mount light, that is when you would use these rings.

They come in the same five finishes. And these rigns are plastic. On the 3 metalic finishes, you may never tell. Screws go in through the oval holes to hold the rings to the underside of your surface. The light snaps into them. You can run the light wire through a pilot hole in your cabinetry or out the side notch in the surface mount ring. Then to finish off the light, the trim ring magnetically snaps onto the light and you have a completed surface mount light.

The 5 surface mount ring choices

SELT-008RBK
Estar LED Tech: LED Light Accessories
Estar LED Tech Co. 008RBK surface mount ring for SELT LED lights, ring is 3/4" tall, light becomes .95" overall height when surface mounted, 3.15" dia., matte black finish
$1.73
Add
SELT-008RWT
Estar LED Tech: LED Light Accessories
Estar LED Tech Co. 008RWT surface mount ring for SELT LED lights, ring is 3/4" tall, light becomes .95" overall height when surface mounted, 3.15" dia., matte white finish
$1.73
Add
SELT-008RBN
Estar LED Tech: LED Light Accessories

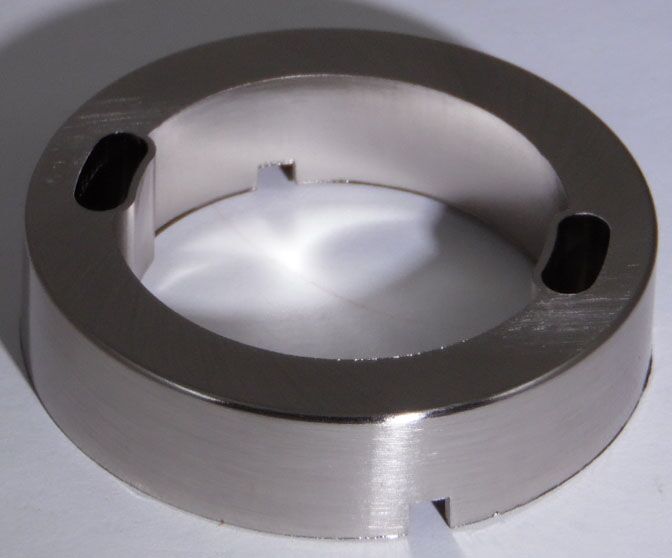

Estar LED Tech Co. 008RBN surface mount ring for SELT LED lights, ring is 3/4" tall, light becomes .95" overall height when surface mounted, 3.15" dia., brushed nickel finish
$1.92
Add
SELT-008RCH
Estar LED Tech: LED Light Accessories
Estar LED Tech Co. 008RCH surface mount ring for SELT LED lights, ring is 3/4" tall, light becomes .95" overall height when surface mounted, 3.15" dia., polished chrome finish
$1.92
Add
SELT-008RGD
Estar LED Tech: LED Light Accessories
Estar LED Tech Co. 008RGD surface mount ring for SELT LED lights, ring is 3/4" tall, light becomes .95" overall height when surface mounted, 3.15" dia., polished gold finish
$1.92
Add

About the surface mount rings

  • Clicking on the 5 pictures above opens additional views to show the underside of the surface ring, and then the ring and trim ring combination
  • When the light is seated in the surface ring, and trim ring is added, you DO NOT see any of the white edge of the light
  • Surface rings are 3.15" in overall diameter
  • Interior hole opening of ring is 2-1/4", lights snap in with their friction fit clips
  • Slotted bottom so light wire can exit to outside of ring if required
  • Overall height of ring is 3/4", with light and trim ring inserted, overall height .95" off surface

Lights and trim rings are ordered on the LED cabinet lights page. If you require LED power drivers for your application, they are on their own page also.

Order one surface mount ring per light that you are planning on surface mounting.

LED lights can be recessed mounted or surface mounted
LED light surface mount rings
