Hafele Hardware Loox LED Cabinet Lighting Fixtures

Click or Tap the orange menu button to view all Hafele page links

Hafele Loox LED Lighting Products

All Hafele products available in the USA are available through us. And we do fully intend to expand upon our offerings as time permits.

Hafele Loox LED lighting is high quality lighting. German engineering through Hafele, Loox LED continues to expand. As shown below with several of the new Loox5 lighting systems shown. Loox5 seems to be offering the same lights in 12v and 24v versions, making some things easier. Sizes, designs, and then the decorative rings and surface mount rings can work on their 12v and 24v counterparts. Most of the 24v lights have a higher lumen output, thus 24v generally are a spec brighter.

We still show some of the Loox4 version lights, the 2047, 2020, 2039, and 3038 lights which have been fantastic in fulfilling the need for LED lights to fit into that popular 2-1/8" size recessed hole. Very common on Carver Yachts and Formula Boats.

Follow the links below. Each page will of course have far more information, pricing, and the ability to order on-line.
This will become the main under cabinet spotlight. 2-9/16" in overall diameter, thus the popular normal size for under cabinet lighting. You have a choice of FIVE finish options. Lights are packaged as recessed, but optional surface mounting rings in all finishes are available. 2.5 watts per light, very ecomonical on your electric bill. 12v and 24v versions. The popular pick for under cabinet kitchen spotlights. Can be used in the bathroom and for furniture making too.
Bookcase and shelf lighting is becoming so popular. And mostly for ambient lighting. Thus, you do not want a powerhouse light on your shelves making it look like an alien invasion. You just want some soft lighting to show off your stuff. This tiny light does the job. Available in multiple kelvin outputs from 2700K to 5000K. You can recess mount it or surface mount it. Then you have to see the decorative ring selections. Either round or square, and also recessed and surface mount options. Giving you a lot of choices for creating the look you want for your room.
GREAT for Carver Yachts!
The 2047 carries an IP20 rating for water and contaminant resistance. When used in a home, you really do not need to worry about that unless you are having water ballon parties in the kitchen. It is a 3 watt LED light available in 5 finishes: white, black, chrome, silver, and stainless steel. Four of those options can be surface mounted also. It can be mounted into the 2-1/8" recessed hole, and since it is 12 volt, can work directly from 12Vdc on boats. We brought in this light due to it being available in a white finish. This was popular on boats. When you need a lot of lights, and budget is a concern, this is a good light to choose.
This is the 24 volt version of the model 2047 light. It is 3 watts, but 24 volt, so it will be brighter. Lumen output is 215-245 depending upon the 3000K, 4000K, or 5000K choices. Available in three metallic finishes: polished chrome, silver (matte chrome), and a brushed stainless steel finish. Packaged as recessed, but optional surface mount rings available. Works from the 24 volt Loox LED drivers. Dimmable, which is a nice feature to have if mounting in kitchens or entertainment centers. For under cabinet lighting in your kitchen, a 3 watt 24 volt light is ideal. And in warm white (3000K), they will look nearly identical to 20 watt halogen lights. But with less heat and far less power consumption. Pre-set to fit in a 2-3/16" hole, but can fit in a 2-1/8" hole. Attached 79" lead wire. Nice light for furniture making too.
Also great for Carver Yachts. IP44 rated.
This is the light we first brought in to take the place of the Hera 12v halogen lights that were discontinued in 2015. It fits into the same recessed hole as the E1, EH11, KB12, and KH12 lights. And it is 12Vdc, which means it works as a direct replacement on Carver Yachts, Formula Boats, and other vessels running low voltage lights directly from 12 volt DC.
Model 2020 LED light is the normal size of under cabinet light, 2-9/16" diameter. It is 3.2 watts and comes in 3 finishes: polished chrome, matte nickel (similar to stainless steel), and matte black. Each finish comes in three light outputs: 3000K, 4000K, and 5000K. Each light is prepackaged as a recessed light, but optional surface mount rings can be used for surface mounting. The light is designed (pre-set) to fit into a 2-3/16" hole, but can fit in a 2-1/8" hole. Since it is 12 volt, it is our ideal light for replacing all 12 volt halogen lights of the past that recessed into a 2-1/8" hole. The light also has an IP44 rating making it far more water resistant than normal puck lights. With all of that said, this is our primo light to use on boats to upgrade from halogen. But it is also great for kitchen and bathroom under cabinet lighting and can work from 12 volt LED power drivers. A mightly little light that fits a lot of needs! This is why we promote it so. And we stock the 3000K version is fair size quanities along with the 12 volt drivers, cables, extenders, and dimmer switches. Some 4000K and 5000K lights are also stocked.

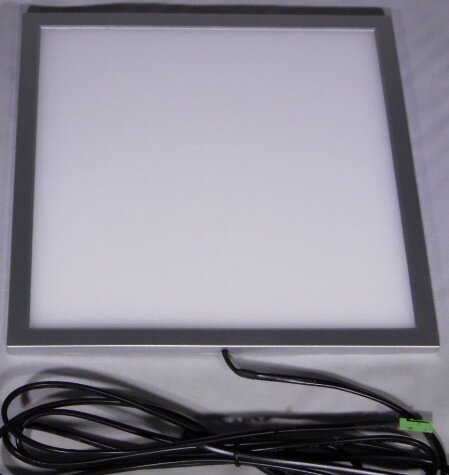

There are four different 24 volt LED lights on this page. Some that are very large, and some normal size. Both round and square selections. These lights are surface mount LED lights but only 6mm tall (1/4"). Thus when mounted they give the appearance of a recess mounted light. Ideal for covering over old light holes where you cannot find a new light to fit in the same size hole. Not a lot of options, but a solution for hiding old holes without having to cut new size holes. Worth a look if you are running into that problem. Can of course be used in brand new applications also as just surface mount LED lights.

Headboard Lighting

As a substitute for the Hafele 2018 light which was discontinued.
This is the light making a splash in Holiday Inn Express and other hotels as a personal reading light. Provides enough light on your side of the bed without disturbing a partner. Convenient on/off swich in the base, flexible arm to point the light from over your shoulder and onto your reading material. Very nice for home use too. Uses only 1 watt of power. Comes prepackaged with its own 24 volt low voltage power driver.
Very similar to model 2018 with the conical head. The 2034 has a round head with a 1.5 watt LED. On-off switch is in the base and has a high/low control. Model 2034 comes in three finishes: polished chrome, matte black, and silver color. Screw hole mounts are hidden to keep a superior finished look. Works from the 12 volt Loox LED power drivers. AND, the light has two USB charging ports in its base. You can connect and charge your devices while using the light. Can be used as a desk light, but it is only 1.5 watts. It is not a bright desk light, more of a personal space desk light.

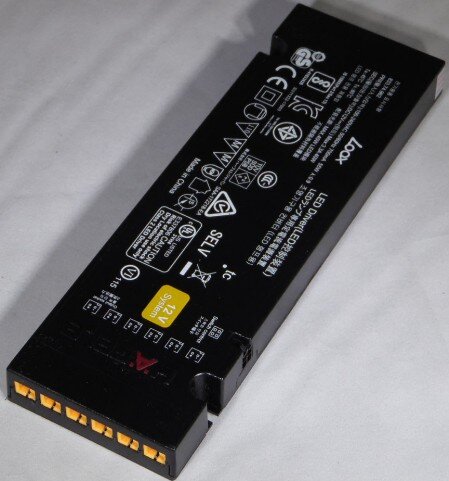

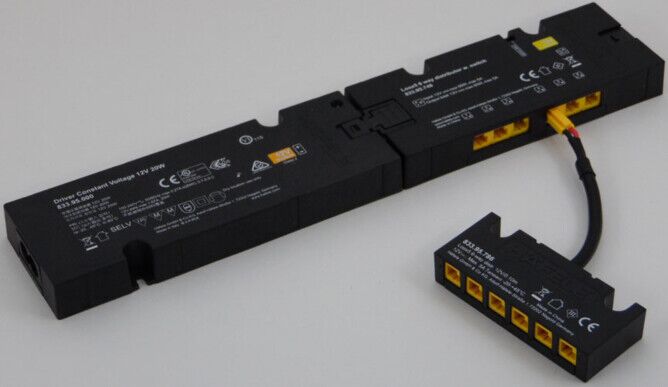

The NEW Loox5 power drivers and distributor choices to work with both new and old Loox LED lights. This page is entirely about the new 12 volt powering systems for Loox LED lights. Lots of info and instructions on it.

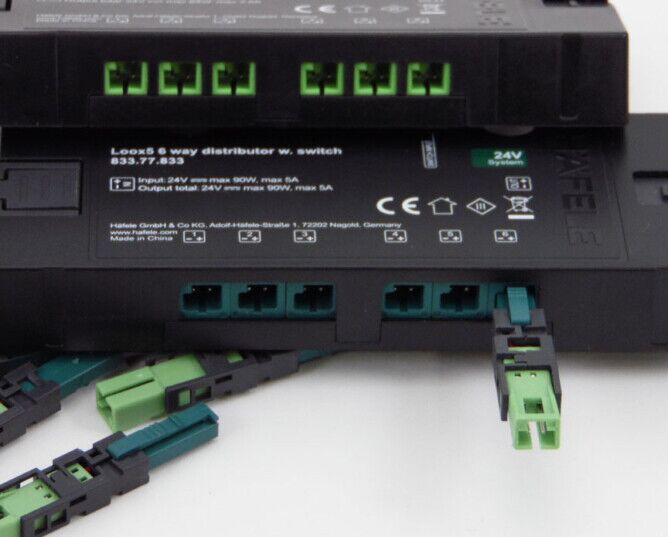

The NEW Loox5 power drivers and distributor choices to work with both new and old Loox LED lights. This page is entirely about the new 24 volt powering systems for Loox LED lights. Lots of info and instructions on it. Page is set up near identically to the 12 volt systems, but pictures and info to show the 24 volt drivers and distributors.
The NEW Loox5 power drivers and distributor have some complexity to them when you are not familiar with them. We will have some questions and answers to help you with your choices.
We thought our Q&A page was good, until we saw this diagram and felt that further explanation of the world of Hafele Loox5 drivers, distributors, extension cables, terminal block extenders, and the lights themselves needed more explanation. Hafele had this spaghetti diagram in their catalog. We are choosing to explain it in more depth. So if you were confused before, this page is going to do one of two things: unconfuse you, or send you off the deep end.
The Loox5 12V and 24V LED power drivers and distributors are stocked by us. We still have quantities remaining on a couple of the older Loox4 LED drivers, and will continue to sell those until Hafele runs out of them. When they are completely sold out, then you will need to solely use the Loox5 components. Remaining stock on the Loox4 drivers is shown on this web page: LED power drivers and dimmers.

As more Hafele Loox lights capture our attention, we will expand upon our selections.
We are planning on adding some of their TAPE LED lighting soon since they have quite a few selections.

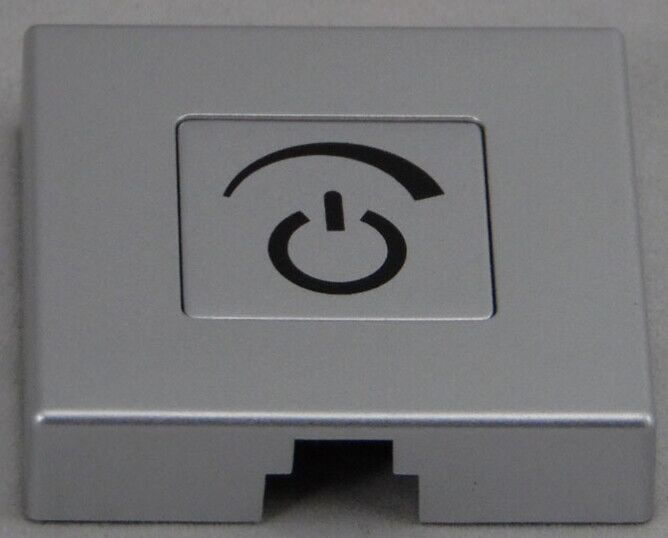

We moved all the barrel style dimmers and switches, and the square touch and touch-free dimmers onto their own page. They work with the 12V and 24V systems. Lead for Modular Switch cables are also on this page.

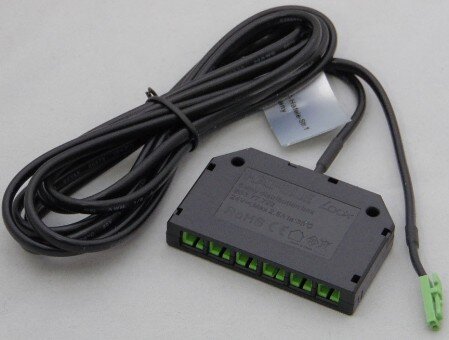

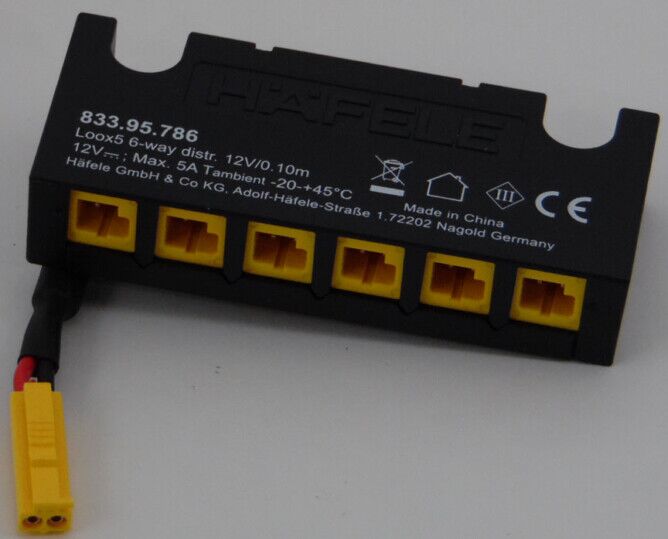

All the 12 volt and 24 volt Loox5 terminal block extenders and extension cables are on this page. Use when needing to connect more than 6 lights to a driver, or to space your lights farther away from the position of the driver.

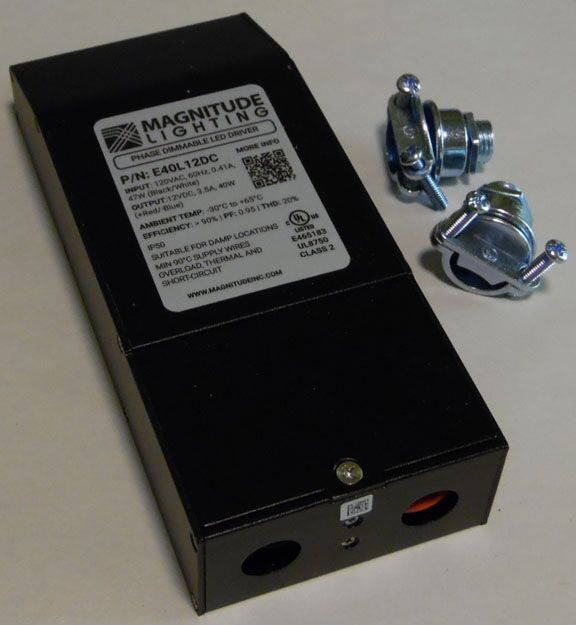

This is a hardwired driver, suggested to be installed by a licensed electrician. This is the driver to choose for ONE reason. It will allow you to have a wall dimmer switch that is controlling power in the 120 volt downline to the driver location. Basically, for those who were use to having a 12v halogen system controlled from a Lutron or Leviton wall dimmer, this driver allows dimming control preceding the driver (the high voltage side). 12V and 24V selections.
Below are some of our older Loox4 pages which still have products available. Quantities remaining will be shown.
What is left of the Loox4 LED power drivers will be shown on this page. Just two sizes in the 24v remain as of right now. For New Loox5 drivers, the 12v and 24v links are shown just a little higher on this page.
All the older Loox4 12 volt and 24 volt terminal block extenders and extension cables are on this page. Use when needing to connect more than 6 lights to a driver, or to space your lights farther away from the position of the driver.
Hafele continues to have leftover stock on SOME lights. If you would like us to inquire about more than what we show left in our stock, e-mail us your request. If we know for fact that some light part numbers are completely gone, we will update our part numbers to reflect that fact.
On Closeout: Model 2039 features an IP65 rating for great water resistance. A nice light to use on marine vessels. Comes in polished chrome or matte nickel and is recessed mounted only. Pre-set for 2-1/4" holes, but can be made to fit in 2-1/8" holes. It is 2.5 watt, so not quite as bright. Can be used in household applications too, especially on open patios and balconies. Available only in 3000K warm white.
Hafele Loox 3038 light in entertainment center
Hafele Loox LED Lighting is great for the home or office. There are so many possibilities on where you can use this lighting. This is one of many 3038 spotlights I have in my entertainment center.

Hafele Loox5 and Loox4 LED Lighting web page links:

Loox5 12v and 24v spotlights: model 2094 and 3094 | model 2090 and 3090
Flexible Arm Reading Lights: Model 2034 round head | Model 2018 conehead
Surface Mounted Slim Height LED spotlights: Models 3023 and 3025
Older Loox4 12v spotlights: Model 2047 | Model 2020 | Model 2039
Older Loox4 24v spotlights:
Model 3038
