Loox5 LED model 2094-3094 recessed or surface mounted lights
Model 2094 is the 12 volt version, and model 3094 is the 24 volt version. They are the same light. Same sizes, same finishes, same option to recess mount or surface mount them with the optional surface mount rings. Both the 12v and 24v come in 5 finishes each, and in 4 kelvin ratings each. 2700K and 3000K are considered warm white lights. 4000K and 5000K are cool white lights. This is the color of the light output, warmer or cooler. Each light is only 2.5 watts, extremely energy efficient with a nice lumen output. The 24v version will be just a tiny bit brighter.
The 12v version can be used on boats operating from 12Vdc. Yet, the 12v and 24v both are fantastic for under cabinet lighting in your kitchen, bathrooms, or even living room displays. They recess mount into a 2-5/16" hole. That is just over 2-1/4". So do note, if you have old lights that you are replacing, and if they were recessed mounted, MEASURE YOUR HOLE DIAMETER TWICE. There was a very popular halogen size of 2-1/8". You ARE NOT going to squeeze a light requiring a 2-5/16" dia. hole into a 2-1/8" hole. That will not work. You can however, most likely increase the diameter of your hole to make this light work if that is your only option.
The Loox5 2094 and 3094 lights are great for in or under kitchen cabinets, in furniture, and many other applications. They do operate from the Loox5 12 volt and 24 volt power drivers and your choice of Loox5 distributor when used in the home or office environment. They are very economically priced and packaged as recessed lights. The lights can be surface mounted in all 5 finishes with the optional surface mount rings, shown lower on this page.
The lens is frosted and the casing is all METAL, not plastic. The front decor ring and back metal casing are fused as one piece. Nothing is designed to come apart on this light. So for some of you familiar with older style halogen lights dropping their decor rings onto the countertop or floor, this will not happen with this light.
The back of the light has 2 friction fit clips. They are pre-set to fit into a 2-5/16" diameter hole. They can compress just a tiny bit more. So the light can fit into a 2-1/4" hole if needed. But you will not be able to squeeze it into that popular 2-1/8" hole. We measured it. If the two friction fit clips were unscrewed and removed, the casing of the light does measure 2-1/8". Thus it could push into a 2-1/8" hole. BUT, what holds it in place without the friction fit clips. AND, yes, take note of this: the casing would be CRAMMED into a 2-1/8" hole with no breathing space around it. This may damage the light in time, and we do not recommend trying it. The 2094-3094 light is designed for a 2-5/16" hole and can work in a 2-1/4" hole. It could work in a 2-3/8" hole also if you want to pull the friction fit clips outward a little before mounting it. (We are just emphasizing this because we get a lot of requests for replacements for older style halogen lights. Just putting the answers out here in advance.)
When surface mounting, note on the rings, two flanges directed inward on the ring for two screws to hold it in place. Then the light snaps into the surface mount ring and holds very well.
Model 2094-3094 lights are dimmable when used with the Loox5 LED power drivers. 79" lead wire preattached to each light. Extension wires are available when a longer reach may be required. The lights have an IP20 water resistance rating.
What do we choose to stock?
The 2094-3094 Loox5 lights were just added to our website in May, 2022. Thus far, we are going to order them as we get requests for them. It generally takes us 3 to 6 days to receive lights from Hafele, depending upon which of their warehouses they ship from. So we can get them rather quickly. When certain finishes and certain kelvin ratings start proving popular, then we will start stocking small to modest quantities for even faster shipments. Direct ships are available too. So we can work with you to accommodate your schedule.
And we are really excited about this Bronze finish. In the 20+ years that we have offered under cabinet lighting, we have never had a bronze finish. It is a rustic oil rubbed bronze look. Really cool. We know this will go well with any brown or dark brown woodwork. Something to think about if you have that kind of decor.
12 Volt light choices
Remember to select from the drop down menus for your Kelvin choice.
HAF-833.72.531
Hafele Loox5 LED Lights
Hafele 833.72.531 Loox5 LED model 2094, 12 V, 2.5 W, warm white 3000K, 150 lumen, recess mount 65x17mm, 58mm bore, 78-3/4" lead wire, polished chrome plated
ADDITIONAL KELVIN CHOICES:
HAF-833.72.530 2700K 135 lumen
HAF-833.72.532 4000K 160 lumen
HAF-833.72.533 5000K 165 lumen
ADDITIONAL KELVIN CHOICES:
HAF-833.72.530 2700K 135 lumen
HAF-833.72.532 4000K 160 lumen
HAF-833.72.533 5000K 165 lumen
$27.75
Add
HAF-833.72.535
Hafele Loox5 LED Lights
Hafele 833.72.535 Loox5 LED model 2094, 12 V, 2.5 W, warm white 3000K, 150 lumen, recess mount 65x17mm, 58mm bore, 78-3/4" lead wire, matte black finish
ADDITIONAL KELVIN CHOICES:
HAF-833.72.534 2700K 135 lumen
HAF-833.72.536 4000K 160 lumen
HAF-833.72.537 5000K 165 lumen
ADDITIONAL KELVIN CHOICES:
HAF-833.72.534 2700K 135 lumen
HAF-833.72.536 4000K 160 lumen
HAF-833.72.537 5000K 165 lumen
$27.75
Add
HAF-833.72.539
Hafele Loox5 LED Lights
Hafele 833.72.539 Loox5 LED model 2094, 12 V, 2.5 W, warm white 3000K, 150 lumen, recess mount 65x17mm, 58mm bore, 78-3/4" lead wire, matte white finish
ADDITIONAL KELVIN CHOICES:
HAF-833.72.538 2700K 135 lumen
HAF-833.72.540 4000K 160 lumen
HAF-833.72.541 5000K 165 lumen
ADDITIONAL KELVIN CHOICES:
HAF-833.72.538 2700K 135 lumen
HAF-833.72.540 4000K 160 lumen
HAF-833.72.541 5000K 165 lumen
$27.75
Add
HAF-833.72.543
Hafele Loox5 LED Lights
Hafele 833.72.543 Loox5 LED model 2094, 12 V, 2.5 W, warm white 3000K, 150 lumen, recess mount 65x17mm, 58mm bore, 78-3/4" lead wire, oil rubbed bronze rustic finish
ADDITIONAL KELVIN CHOICES:
HAF-833.72.542 2700K 135 lumen
HAF-833.72.544 4000K 160 lumen
HAF-833.72.545 5000K 165 lumen
ADDITIONAL KELVIN CHOICES:
HAF-833.72.542 2700K 135 lumen
HAF-833.72.544 4000K 160 lumen
HAF-833.72.545 5000K 165 lumen
$27.75
Add
HAF-833.72.547
Hafele Loox5 LED Lights
Hafele 833.72.547 Loox5 LED model 2094, 12 V, 2.5 W, warm white 3000K, 150 lumen, recess mount 65x17mm, 58mm bore, 78-3/4" lead wire, nickel finish (brushed, very similar to stainless steel)
ADDITIONAL KELVIN CHOICES:
HAF-833.72.546 2700K 135 lumen
HAF-833.72.548 4000K 160 lumen
HAF-833.72.549 5000K 165 lumen
ADDITIONAL KELVIN CHOICES:
HAF-833.72.546 2700K 135 lumen
HAF-833.72.548 4000K 160 lumen
HAF-833.72.549 5000K 165 lumen
$27.75
Add
24 Volt light choices
Also select from the drop down menu for your warm white or cool white choices
HAF-833.75.321
Hafele Loox5 LED Lights
Hafele 833.75.321 Loox5 LED model 3094, 12 V, 2.5 W, warm white 3000K, 160 lumen, recess mount 65x17mm, 58mm bore, 78-3/4" lead wire, polished chrome plated
ADDITIONAL KELVIN CHOICES:
HAF-833.75.320 2700K 140 lumen
HAF-833.75.322 4000K 165 lumen
HAF-833.75.323 5000K 175 lumen
ADDITIONAL KELVIN CHOICES:
HAF-833.75.320 2700K 140 lumen
HAF-833.75.322 4000K 165 lumen
HAF-833.75.323 5000K 175 lumen
$27.75
Add
HAF-833.75.325
Hafele Loox5 LED Lights
Hafele 833.75.325 Loox5 LED model 3094, 12 V, 2.5 W, warm white 3000K, 160 lumen, recess mount 65x17mm, 58mm bore, 78-3/4" lead wire, matte black finish
ADDITIONAL KELVIN CHOICES:
HAF-833.75.324 2700K 140 lumen
HAF-833.75.326 4000K 165 lumen
HAF-833.75.327 5000K 175 lumen
ADDITIONAL KELVIN CHOICES:
HAF-833.75.324 2700K 140 lumen
HAF-833.75.326 4000K 165 lumen
HAF-833.75.327 5000K 175 lumen
$27.75
Add
HAF-833.75.329
Hafele Loox5 LED Lights
Hafele 833.75.329 Loox5 LED model 3094, 12 V, 2.5 W, warm white 3000K, 160 lumen, recess mount 65x17mm, 58mm bore, 78-3/4" lead wire, matte white finish
ADDITIONAL KELVIN CHOICES:
HAF-833.75.328 2700K 140 lumen
HAF-833.75.330 4000K 165 lumen
HAF-833.75.331 5000K 175 lumen
ADDITIONAL KELVIN CHOICES:
HAF-833.75.328 2700K 140 lumen
HAF-833.75.330 4000K 165 lumen
HAF-833.75.331 5000K 175 lumen
$27.75
Add
HAF-833.75.333
Hafele Loox5 LED Lights
Hafele 833.75.333 Loox5 LED model 3094, 12 V, 2.5 W, warm white 3000K, 160 lumen, recess mount 65x17mm, 58mm bore, 78-3/4" lead wire, oil rubbed bronze rustic finish
ADDITIONAL KELVIN CHOICES:
HAF-833.75.332 2700K 140 lumen
HAF-833.75.334 4000K 165 lumen
HAF-833.75.335 5000K 175 lumen
ADDITIONAL KELVIN CHOICES:
HAF-833.75.332 2700K 140 lumen
HAF-833.75.334 4000K 165 lumen
HAF-833.75.335 5000K 175 lumen
$27.75
Add
HAF-833.75.547
Hafele Loox5 LED Lights
Hafele 833.75.547 Loox5 LED model 3094, 12 V, 2.5 W, warm white 3000K, 160 lumen, recess mount 65x17mm, 58mm bore, 78-3/4" lead wire, nickel finish (brushed, very similar to stainless steel)
ADDITIONAL KELVIN CHOICES:
HAF-833.75.546 2700K 140 lumen
HAF-833.75.548 4000K 165 lumen
HAF-833.75.549 5000K 175 lumen
ADDITIONAL KELVIN CHOICES:
HAF-833.75.546 2700K 140 lumen
HAF-833.75.548 4000K 165 lumen
HAF-833.75.549 5000K 175 lumen
$27.75
Add
Optional Surface Mount Rings
Lights come prepacked for recess mounting. Only add surface mount rings if you are planning on surface mounting.
HAF-833.72.806
Hafele Loox5 LED Lights

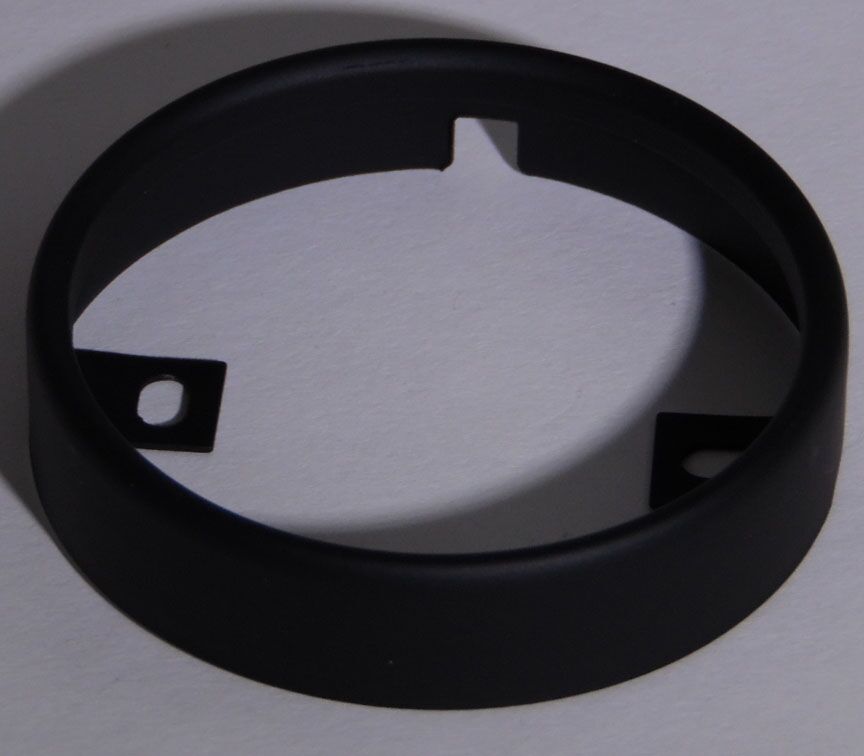

Hafele 833.72.806 Loox5 LED model 2094 and 3094 surface mount ring, 65mm OD, black finish
$6.09
Add
HAF-833.72.807
Hafele Loox5 LED Lights
Hafele 833.72.807 Loox5 LED model 2094 and 3094 surface mount ring, 65mm OD, white finish
$6.09
Add
HAF-833.72.808
Hafele Loox5 LED Lights
Hafele 833.72.808 Loox5 LED model 2094 and 3094 surface mount ring, 65mm OD, bronze finish
$6.09
Add
HAF-833.72.809
Hafele Loox5 LED Lights
Hafele 833.72.809 Loox5 LED model 2094 and 3094 surface mount ring, 65mm OD, polished chrome finish
$6.09
Add
HAF-833.72.528
Hafele Loox5 LED Lights
Hafele 833.72.528 Loox5 LED model 2094 and 3094 surface mount ring, 65mm OD, nickel finish (like stainless steel)
$6.09
Add
LED Power Drivers and Distributors to use
1 to 6 lights can easily run from the smaller 20 watt driver. With the aid of terminal block extenders, or additional distributors, technically, up to 16 of this 2.5 watt light could run from one 40 watt driver with multiple terminal block extenders.
HAF-833.95.000
Hafele Loox5 Drivers and Distributors
Hafele 833.95.000 Loox5 LED 12V DC class 2 driver, 0-20 watts, 100-240 V, light-yellow port, 140x50x16mm, overload protection, black plastic casing, 70,000 hour life rating, requires distributor
$51.98
Add
HAF-833.95.002
Hafele Loox5 Drivers and Distributors
Hafele 833.95.002 Loox5 LED 12V DC class 2 driver, 0-40 watts, 100-240 V, light-yellow port, 191x60x16mm, overload protection, black plastic casing, 70,000 hour life rating, requires distributor
$82.56
Add
HAF-833.95.748
Hafele Loox5 Drivers and Distributors
Hafele 833.95.748 Loox5 12v 6-way distributor with switching function. Used with Loox5 12v drivers, can connect additonal units in series, light-yellow ports, 120mm x 50mm x 16mm.
THIS IS DIMMABLE
THIS IS DIMMABLE
$17.72
Add
HAF-833.95.786
Hafele Loox5 Drivers and Distributors
Hafele 833.95.786 Loox5 12v 6-way pigtail distributor WITHOUT switching function. Used with Loox5 12v drivers, 6 light-yellow ports, 70mm x 30mm x 14mm with 100mm long pigtail
$13.72
Add
HAF-833.95.008
Hafele Loox5 Drivers and Distributors
Hafele 833.95.008 Loox5 LED 24V DC class 2 driver, 0-20 watts, 100-240 V, dark-green port, 140x50x16mm, overload protection, black plastic casing, 70,000 hour life rating, requires distributor
$51.98
Add
HAF-833.95.010
Hafele Loox5 Drivers and Distributors
Hafele 833.95.010 Loox5 LED 24V DC class 2 driver, 0-40 watts, 100-240 V, dark-green port, 191x60x16mm, overload protection, black plastic casing, 70,000 hour life rating, requires distributor
$81.97
Add
HAF-833.77.833
Hafele Loox5 Drivers and Distributors
Hafele 833.77.833 Loox5 24v 6-way distributor with switching function. Used with Loox5 24v drivers, can connect additonal units in series, dark-green ports, 120mm x 50mm x 16mm.
THIS IS DIMMABLE
THIS IS DIMMABLE
$17.72
Add
HAF-833.77.839
Hafele Loox5 Drivers and Distributors
Hafele 833.77.839 Loox5 24v 6-way pigtail distributor WITHOUT switching function. Used with Loox5 24v drivers, 6 dark-green ports, 70mm x 30mm x 14mm with 100mm long pigtail
USE as distributor and also as terminal block extender.
USE as distributor and also as terminal block extender.
$13.72
Add
Click or Tap the orange menu button to view all Hafele page links
Ordering Notes
- Select the number of lights that you need for your project.
- For each zone, and by zone, we mean a group of lights controlled together, but potentially not controlled with any other group. Thus, 3 lights to the left of your range hood and 6 lights to the right of your range hood could be considered two zones if you cannot run all the light wires back to one point. You may still turn those 9 lights on and off together. But if you cannot run all wires to one point to run from one power driver, you will split them into zones.
- So for each zone, select the appropriate sized LED power driver. Bigger projects may require multiple drivers.
- Select your distributor or multiple distributors. Note, if using a distributor with a switching port for dimming or other control, it will control the lights leading out of that distributor only. What does that mean? If you connect two distributors in-line on the 40 watt driver because you want to use 12 lights, a dimmer connected into the first distributor IS NOT going to control the lights in the second distributor. So if your intent is to control all 12 lights with one switch, then we suggest that you get one distributor with the switching port, and then use that pigtail distributor coming out of the first distributor. That is nothing more than a port multiplier. Using 2 of those in the first distributor gives you 16 ports. Each adds 6 ports while using one, net gain of 5 ports. If you have questions, call or e-mail us. Or take a look at our Making Sense of Loox5 LED Power Drivers page.
- If any extension wires are required for more reach, add those into your cart.
Links to all Hafele pages are at the bottom of each Hafele page or in the Orange Menu button toward the top of the page. You can view additional LED power driver choices, more distributor choices, extension wires, and dimmer switch accessories and lead wires. As well as a few help pages that we had set up. Loox5 is just a tiny bit more complicated than the old Loox3 and Loox4 systems. But Loox5 allows you to keep your Loox3 and Loox4 lights lit up should you need a new power driver. A clever system from Hafele.
Additional help for Loox5 2094-3094 lights
And now a few more descriptive photos. On the light images in the shopping cart images above, clicking on them gives you a choice to see the back of the light.
Light shown with optional surface mount ring. All 5 finishes have the surface mount option. Ring attaches to surface with two screws. Light wire snakes through and the light snaps into the ring. There is a notch in the ring to run the wire straight out the side if you need too. Sometimes you have a pilot hole and feed the wire through the cabinetry. The ring gives you two options for how your wire leads away.

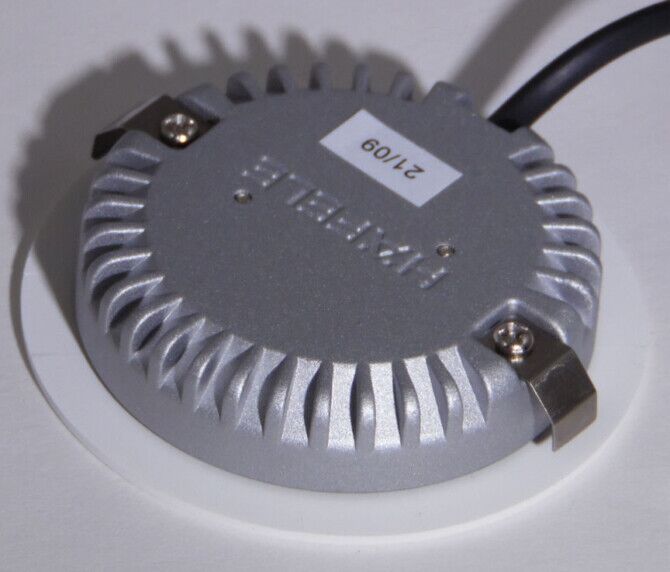

The two friction fit clips on the back of the light for recessed mounting. They are metal, they are attached with one screw each. They can compress from the 2-5/16" to fit a 2-1/4" hole. You can spread them if you happen to have a slightly larger hole. The lights decor ring is 2-9/16", so obviously, your hole must be smaller than that or the light would fall through. But possible to use these lights even in a 2-1/2" hole. It could be done. For new installs, bore a 2-5/16" hole, that is the proper thing to do.

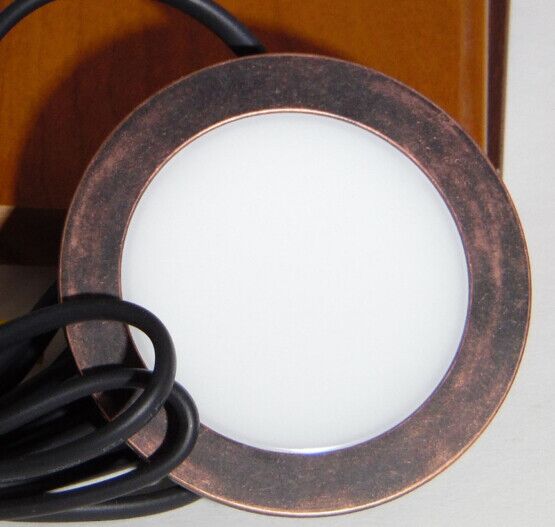

The bronze finish which we like calling a rustic oil rubbed bronze finish. It has dark brown, it has a little gold in it. Finish varies allowing it to go with many shades of brown-tone woodwork.
All lights are boxed individually and come with a protective piece of rubber film over the lens. Remove that before turning them on, but okay to leave on until your installation is done. May save you a little cleaning time. Also, when hooking up your lights, sending power to the LED driver COMES LAST. Make all your light connections, then plug in the driver LAST. Do not connect lights to a powered driver. The arc that happens when inserting the light into a port could damage it.
The surface mount rings, as well as the face decor ring, and the back of the lights are all metal construction. This is a magnet shown holding the white ring up.
When considering under cabinet LED spotlights, the Loox5 2094 and 3094 are an excellent choice. They are extremely energy efficient, can be purchased individually for any size project, and can be used inside cabinets as well as under cabinets. This is an ideal kitchen cabinet light. As well as for many other areas of the home or commerical spaces.
