Loox5 2034-3034 Flexible Arm LED Light

Click or Tap the orange menu button to view all Hafele page links

Flexible Reading Light with dual-level switch

This flexible arm reading light has some nice perks. First, you can of course pinpoint the light where you want it. So it is very nice as a personal reading light for a bedroom headboard. It is 3000K warm white for that nice soft evening lighting. Ideal for cutting glare bouncing back from white pages in your book or magazine. It can also be used as a great desk lamp. Remember the old days of a 60 watt light bulb glowing on your desk, throwing heat, and using those 60 watts per hour? This 1.5 watt reading light places the light on your work surface where you need it.
The Loox 2034 and 3034 lights comes in 2 finishes: polished chrome or matte black. You have a choice of the 12 volt or 24 volt version now. The on-off switch is in the base and has a high and low setting. So if you want a little less light, you can use it on low. Overall, the light is 1.5 watts. It has a USB charging port on the side of the base. Total power consumption could be 17 watts when using the USB port to charge or power a device. With this light, you can work from a tablet or phone and keep it charged fully as you work. The light is plenty bright to light up a small section of a desktop.

In our expanded photos when clicking on a picture below, you will see how the decorative ring on the base comes off to reveal the screw holes for mounting of the light. That ring is actually magnetic. You can peel it off gently. When putting it back on, it kind of snaps into position on its own. Yes, we thought that was pretty cool too.

Lights DO NOT have an attached lead wire, you will select the 2 meter (79"), or 1 meter (39") cable. It snap connects into the light, and then the other end for easy connection into Loox 12 volt or 24 volt LED drivers. If planning on using 2 lights from the same driver, the 20 watt driver is fine, UNLESS you are planning on using the charging port in each light to power your devices. If that is the case, step up to the 40 watt driver and then you can keep devices connected to the bases of each light and charge what you need. When charging devices, the power consumption can be up to 17 watts per light. When using the light only, power consumption is 1.5 watts per light.
HAF-833.74.088
Hafele Loox5 LED Lights
Hafele 833.74.088 Loox5 LED model 2034, flexible arm light, 12V, 3000K warm white, 120 lumen, with USB port 5V/2A, hi-low on/off switch in base, black finish (17 watt total, 1.5 watt for light only), screw mounted under cover. Almost 18" long from head to base.
NEEDS 833.95.830 or .831 lead wire "purchased separately.
$115.66
Add
HAF-833.74.089
Hafele Loox5 LED Lights
Hafele 833.74.089 Loox5 LED model 2034, flexible arm light, 12V, 3000K warm white, 120 lumen, with USB port 5V/2A, hi-low on/off switch in base, chrome-plated finish (17 watt total, 1.5 watt for light only), screw mounted under cover. Almost 18" long from head to base.
NEEDS 833.95.830 or .831 lead wire "purchased separately.
$115.56
Add
HAF-833.75.088
Hafele Loox5 LED Lights
Hafele 833.75.088 Loox5 LED model 2034, flexible arm light, 24V, 3000K warm white, 120 lumen, with USB port 5V/2A, hi-low on/off switch in base, black finish (17 watt total, 1.5 watt for light only), screw mounted under cover. Almost 18" long from head to base.
NEEDS 833.95.835 or .836 lead wire "purchased separately.
$115.66
Add
HAF-833.75.089
Hafele Loox5 LED Lights
Hafele 833.75.089 Loox5 LED model 2034, flexible arm light, 24V, 3000K warm white, 120 lumen, with USB port 5V/2A, hi-low on/off switch in base, chrome-plated finish (17 watt total, 1.5 watt for light only), screw mounted under cover. Almost 18" long from head to base.
NEEDS 833.95.836 or .836 lead wire "purchased separately.
$115.56
Add
Hafele Loox5 LED Lights
Hafele 833.95.830 Loox5 lead wire 5A/18 AWG with snap in connector, 12 volt, 2 meters long (78-3/4")
Also:
HAF-833.95.831 one meter long (39-3/8")
$7.13
Add
Hafele Loox5 LED Lights
Hafele 833.95.835 Loox5 lead wire 5A/18 AWG with snap in connector, 24 volt, 2 meters long (78-3/4")
Also:
HAF-833.95.836 one meter long (39-3/8")
$7.13
Add
Hafele Loox5 Drivers and Distributors
Hafele 833.95.000 Loox5 LED 12V DC class 2 driver, 0-20 watts, 100-240 V, light-yellow port, 140x50x16mm, overload protection, black plastic casing, 70,000 hour life rating, requires distributor
$51.98
Add
Hafele Loox5 Drivers and Distributors
Hafele 833.95.008 Loox5 LED 24V DC class 2 driver, 0-20 watts, 100-240 V, dark-green port, 140x50x16mm, overload protection, black plastic casing, 70,000 hour life rating, requires distributor
$51.98
Add
Hafele Loox5 Drivers and Distributors
Hafele 833.95.747 Loox5 12v 6-way distributor WITHOUT switching function. Used with Loox5 12v drivers, can connect additonal units in series, light-yellow ports, 120mm x 50mm x 16mm.
NOT DIMMABLE
$15.39
Add
Hafele Loox5 Drivers and Distributors
Hafele 833.77.832 Loox5 24v 6-way distributor WITHOUT switching function. Used with Loox5 24v drivers, can connect additonal units in series, dark-green ports, 120mm x 50mm x 16mm.
NOT DIMMABLE
$15.39
Add
Ordering Note:
The lights are 1.5 watts for the light, and 17 watts total if planning on using the USB charging port in the base. If ordering just one light, then the 20 watt LED power driver is fine. If planning two lights per driver, consider the 40 watt driver (or 24V) with the lights. Lights can be controlled individually by their base switch. So if multiple lights on the same driver, each light has separate on-off function in its base. Ideally meant for mounting to vertical wall applications, but can be mouted on horizontal surfaces. If on a horizontal surface, you will reduce the overall reach of the flex arm by a little bit as it would have to curve first to reach your desired angle. Vertically mounted applications give you the best reach with the flex arm.

Lead wire: The Loox5 2034-3034 lights DO NOT have a pre-attached lead wire. You need to select the 2 meter or 1 meter long lead wire PER LIGHT. It has a special connection end that fits into the light, other end connects to the driver or distributor.

Point to make about the drivers: If you are planning to use just one light per driver, then you do not need a distributor. The driver has an output port on its end, a distributor is for the purpose of connecting more lights to a drivers, as with the under cabinet spotlights. If using only one of these reading lights, the lead wire can feed directly out of the driver. All the Loox5 input and output ports are the same. All extension wires have the same connection ends/ports. But there are SPECIAL LEAD WIRES such as those that you need to purchase separately with this light. One end of that wire is designed for this special port on the light. But the other end is the normal male end connection port for Loox5. So it can snap directly into the driver with no need of a distributor.

Now, if you are considering the 40, 60, or 90 watt drivers because you will connect more lights to a driver, then you need the distributor. And the non-switching version in this case since each light has a built in high-low/off-on switch in its base.

Using one or two of these as a personal desk light can be done. They are just 1.5 watts for the light output, which is not super bright, they are not meant to light up a whole room. But for pinpointed light for a small area of your desk to keep from disturbing anyone nearby with a brighter light works quite well. The dual action switch technically acts as a dimmer for the high-low settings.

For accessories, select from these links: LED power drivers 12v 24v | extension cables

Below: The Loox4 version of the 2034 light

We have a couple left in stock, selling off at a lower price. These have the Loox4 connection ends. Differen from Loox5 ends.
HAF-833.74.096
Manufacturer: Hafele
Hafele 833.74.096 Loox4 LED model 2034, flexible arm light, 12V, 4000K cool white, 105 lumen, with 2 USB ports 5V/2A, hi-low on/off switch in base, 78-3/4'' lead wire, chrome plated finish (17 watt total, 1.5 watt for light only)
(1 left in stock, older Loox4 version)
$68.56
Add
HAF-833.74.097
Manufacturer: Hafele
Hafele 833.74.097 Loox4 LED model 2034, flexible arm light, 12V, 4000K cool white, 105 lumen, with 2 USB ports 5V/2A, hi-low on/off switch in base, 78-3/4'' lead wire, black finish (17 watt total, 1.5 watt for light only)
(1 left in stock, older Loox4 version)
$68.56
Add
Hafele Loox5 Drivers and Distributors
Hafele 833.95.000 Loox5 LED 12V DC class 2 driver, 0-20 watts, 100-240 V, light-yellow port, 140x50x16mm, overload protection, black plastic casing, 70,000 hour life rating, requires distributor
$51.98
Add
Hafele Loox5 Drivers and Distributors

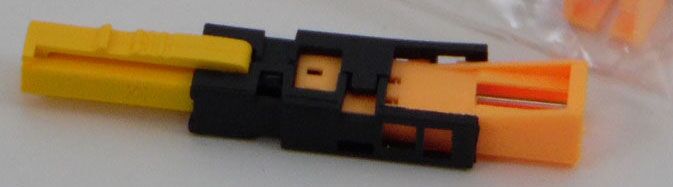

Hafele 833.95.753 Loox5 LED 12v adapters 1-COUNT, light-yellow. Allows older Loox LED light to connect into new Loox5 distributor. (follow the color direction, yellow to orange, thus new driver to old light) - SINGLE connector - for smaller needs
$3.11
Add
Ordering Note (for the older Loox4 version):
Select the light with the 20 watt driver and one adapter to make the connection on the driver go from Loox5 to Loox4.

Hafele Loox5 and Loox4 LED Lighting web page links:

Loox5 12v and 24v spotlights: model 2094 and 3094 | model 2090 and 3090
Flexible Arm Reading Lights: Model 2034 round head | Model 2018 conehead
Surface Mounted Slim Height LED spotlights: Models 3023 and 3025
Older Loox4 12v spotlights: Model 2047 | Model 2020 | Model 2039 | Model 2027
Older Loox4 24v spotlights:
Model 3038
