Routed Square Inside Corner Raised Panel Doors

Brushy Creek Custom Doors section index

Brushy Creek Custom Doors Square Corner Raised Panel Profile Choices

This is page 2 of your Raised panel choices.
Remember, there are 3 types of cabinet doors to select from: Raised Panel, Flat Panel (Shaker), and Slab (flat face).
For explanations Shaker Style Doors (flat panel), and Slab doors and drawer fronts, select form those page links.

This page focuses on Raised Panel Doors. Specifically, the routed square inside corner raised panel doors. Square inside corner means the core of the door receives several passes from the router when it is being cut. This allows the inside corners, the part from the frame reaching down and over to the panel portion, to be cleaned out more and thus create a nice square 90 degree cut. It is not the outside edge of the door we are referring to, it is the inside profile. What distinguishes it as a raised panel. Square inside corner doors do cost just a bit more than radius inside corner. They are sharper looking, offer a few more profile choices to select from, and kind of have a more elegant look.

To view the other two pages for options in Raised panel doors, select from these links: Rounded Inside Corner Raised Panel Doors and Raised Panel Doors with Inside Corner Options. The link with the word Rounded in it refers to doors where the router passes around only twice and leaves the inside corners nicely rounded. These designs are less expensive. And then the link with the word Options allows you to select a profile design and then choose whether you would like a rounded inside corner, a one-eighth inch radius (less round), or a true square corner.

Despite which Raised Panel option you choose, any of the six edge choices can be applied to any door. Mix and match them as you like and Create the Raised Panel Look you want. Let's continue....

Raised Panel Door and Drawer Fronts - Routed Square Corner Panel Profiles

Available in these door styles: Square, Arch, Cathedral, Roman Arch.

What we show first: A color picture of a door design, and then the black and white diagram showing the specific way the raised panel shape is cut. This applies to doors and drawer fronts both. Note: matching raised panel drawer fronts must be a minimum of 5-1/2" high. Any measurement needed under that will be made as a SLAB drawer front. Standard with a horizontal grain. Vertical grain is your option to select, but horizontal looks better.
Brushy Creek Custom Doors Accord Raised Panel Profile
Accord Profile Choice
Brushy Creek Custom Doors Accord Raised Panel Profile specs
Accord Profile specs

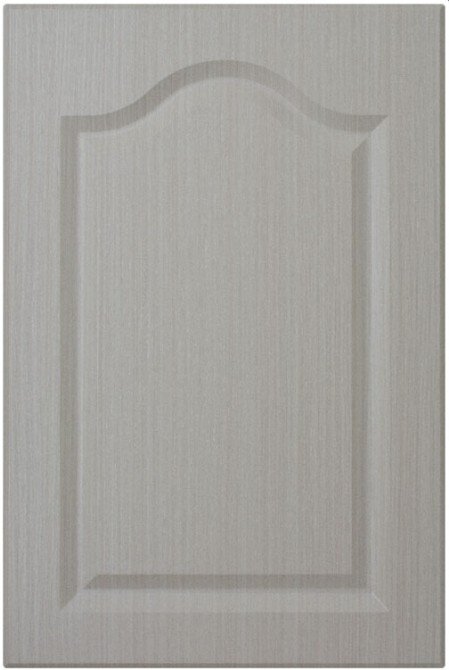

Brushy Creek Custom Doors Wilmington Raised Panel Profile
Wilmington Profile Choice

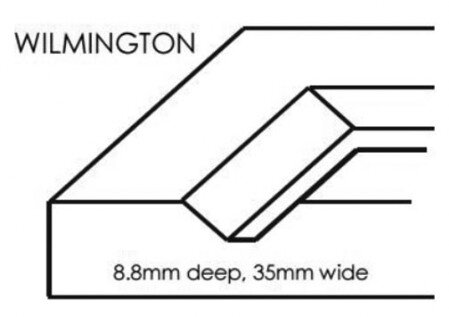

Brushy Creek Custom Doors Wilmington Raised Panel Profile specs
Wilmington Profile specs
Brushy Creek Custom Doors New York Raised Panel Profile
New York Profile Choice
Brushy Creek Custom Doors New York Raised Panel Profile specs
New York Profile specs
Brushy Creek Custom Doors Charleston Raised Panel Profile
Charleston Profile Choice

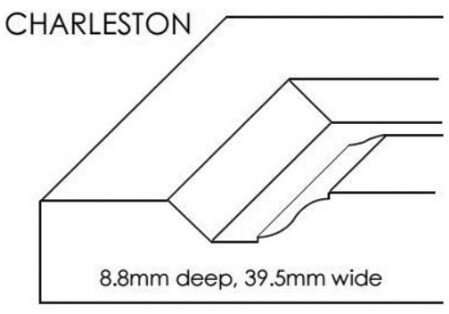

Brushy Creek Custom Doors Charleston Raised Panel Profile specs
Charleston Profile specs
Brushy Creek Custom Doors Columbia Raised Panel Profile
Columbia Profile Choice
Brushy Creek Custom Doors Columbia Raised Panel Profile specs
Columbia Profile specs

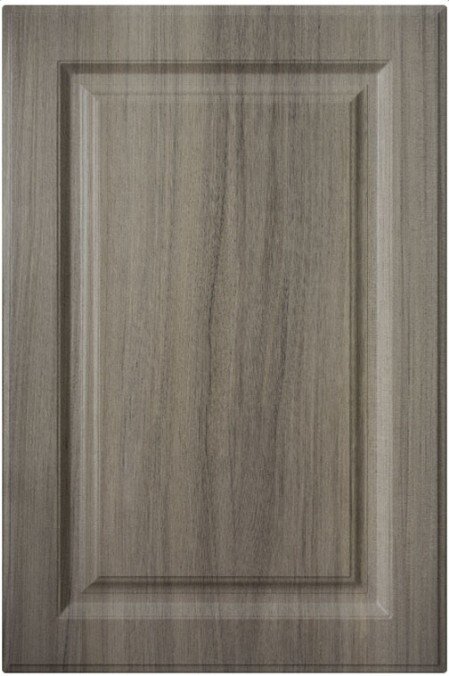

Brushy Creek Custom Doors Heartland Raised Panel Profile
Heartland Profile Choice
Brushy Creek Custom Doors Heartland Raised Panel Profile specs
Heartland Profile specs

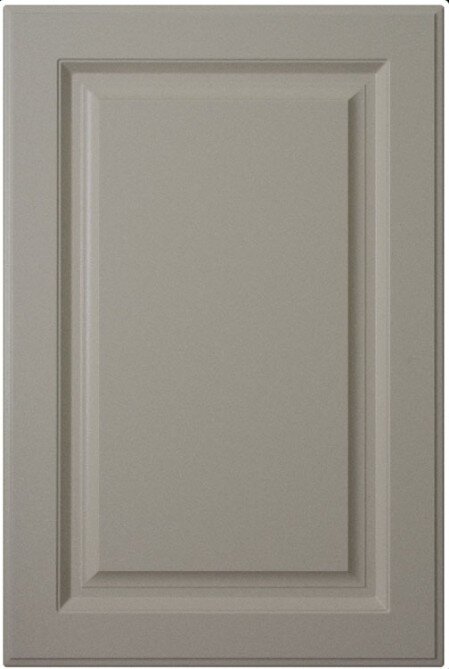

Brushy Creek Custom Doors Captiva Raised Panel Profile
Captiva Profile Choice
Brushy Creek Custom Doors Captiva Raised Panel Profile specs
Captiva Profile specs

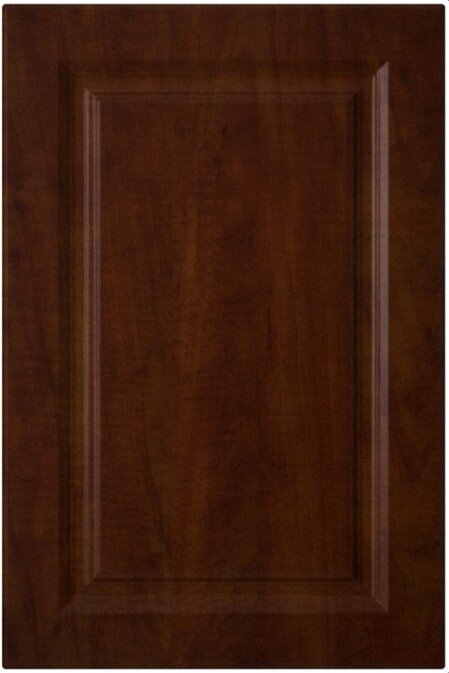

Brushy Creek Custom Doors Salem Raised Panel Profile
Salem Profile Choice
Brushy Creek Custom Doors Salem Raised Panel Profile specs
Salem Profile specs
Brushy Creek Custom Doors Greenville Raised Panel Profile
Greenville Profile Choice
Brushy Creek Custom Doors Greenville Raised Panel Profile specs
Greenville Profile specs
To learn more about open front doors that you can insert your glass panels into. Great for adding cabinet lighting into your cabinets too.
Finish off the tops of your cabinets with Crown Molding to match. Additional molding choices shown too.
To start a quotation request, select that link.

What do you do now?

If you believe you are ready to request a quotation, select the link above to use our on-line form. It has a lot of helpful notes throughout it. And we did design it to look real nice on a PC or laptop, or wide view on a tablet. If you are on a smart phone, it will appear indefinitely long, but it does work on a smart phone.

This page just showed the pass profiles, and then your edge choices coming up below. If you need help measuring, visit out measuring page. If you need help deciding if you have face frame or frameless cabinetry, visit that page. The type of cabinetry you have will affect your hinge boring choice and hinges, if you are choosing those options.

Note that in the color pictures just above, we show mostly square design doors, and one Cathedral design. These routed square corner raised panel doors can be cut in the Square, Cathedral, Arch, and Roman Arch designs shown on the raised panel door designs page.

  • Thus, you pick a door design, and you can mix them. Square design for your base cabinets and one of the arch designs for your upper cabinets. Or make the all square. We do not recommend arch or wavy top doors for your base cabinets. It looks weird.
  • After selecting your door design, you choose your pass profile.
  • And choose one of the below edge profiles.
  • You decide on matching raised panel drawer fronts, or slab drawer fronts, or mix them up a bit too, especially on the shorter heights. This is of course if you need drawer fronts. In a kitchen you will. For laundry room cabinets, bathroom cabinets, or other fine furniture, you may not need drawer fronts.
  • If you need help integrating any frame only or mullion door designs into your upper cabinets, see our mullion cabinet door page.
  • You have to have your measurements ready.
  • Decide on your 3D Laminate color too.
  • Other options can be decided afterward. Hinge boring does have a charge associated with it, as does finger pulls or anything extra. You can add options or not add options.
  • The on-line quotation form will help you through it, and it should open in a new tab or window so you can leave it open and flip back and forth between pages in your other tab.
  • You also have our Contact Us page link and phone number at the top and bottom of all web pages.

Raised Panel Door and Drawer Fronts - Outside Edge Profiles

This refers to the very perimeter of a door or drawer front. Any door style or profile selection can have any of the following six edge choices. Make the doors look the way you would like them to look. And then the same edge is applied to your drawer fronts for continuity. Including standard slab drawer front choices. Finger pull options are sometimes requested; diagram is shown lower on that web page.
If you still have questions, you are welcome to e-mail or call us. This page is reference for the routed square corner raised panel profile selections and edge profile choices.
  • To see diagrams of the raised panel door styles, please select that link. Arch, Cathedral, etc.
  • And then when you are ready to view all the 3-D Laminate colors, go to that page.
  • Extras like moldings, fillers, and matching wine racks are on their respective pages. Viewable from the text links below or from the Orange Menu Button near the top left of the page.

There are other helpful pages referring to hinges and hinge boring, measuring, and other options.
And then after you piece it all together, you can request a quote by using our Quotation and Ordering Form.
