Stick3-LED Linear Shielded LED Lights

Miniature Linear LED Light with Bright even light output
The Stick3-LED is Hera's prime addition to the Stick-LED family of lights. You can recess or surface mount these linear lights for furniture, display, showcase, or under cabinet lighting. The Stick3-LED is designed with a frosted continuous lens to produce a smooth light output similar to fluorescent, yet with a much smaller dimension and no LED hot spots. The beam angle is wide, throwing light evenly and far. Overall, the Stick3-LED is approx. FOUR times brighter than the Stick2-LED.
Product Features:
  • Bright linear LEDs with continuous frosted lens
  • Extremely small dimensions: 1/2" width x 1/2" height
  • Can be recessed mounted (flush with surface) or surface mounted
  • Available in five sizes: 8" (2.5W), 12" (4W), 24" (7.5W), 34" (11.5W), and 46" (15W)
  • Readily available in 3000K (warm white), and 4000K (cool white)
  • Also availble from 2700K to 6500K by special order, but larger minimums apply (generally hundreds of lights to order these special Kelvins)
  • Estimated 50,000 hours of useable life
  • Excellent CRI >85, Efficiacy > 104 lm/W
  • Extremely high, even light output
  • Lights can connect end to end by overlapping, or spaced apart with connecting cables, allows for turning corners too
  • Power supply cable is 59" and ordered separately, one per run of lights, multiple runs can lead out of same power driver
  • For use with PS24V constant voltage power drivers
  • Magnetic mounting clips available, and 45 degree screw mount clips available too
  • Dimmable with optional dimming accessories shown on Drivers and Dimmers page
HER-STICK3/__/CW
Manufacturer: Hera Lighting
Hera HER-STICK3/8/CW Stick3-LED 8'' long, 2.5W cool white, needs LED driver, power cable, and possibly various connecting cables
Also: (available in 5 lengths)
HER-STICK3/12/CW 12" long, 4 watt
HER-STICK3/24/CW 24" long, 7.5 watt
HER-STICK3/34/CW 34" long, 11.5 watt
HER-STICK3/46/CW 46" long, 15 watt
$64.71
Add
HER-STICK3/__/WW
Manufacturer: Hera Lighting
Hera HER-STICK3/8/WW Stick3-LED 8'' long, 2.5W warm white, needs LED driver, power cable, and possibly various connecting cables
Also: (available in 5 lengths)
HER-STICK3/12/WW 12" long, 4 watt
HER-STICK3/24/WW 24" long, 7.5 watt
HER-STICK3/34/WW 34" long, 11.5 watt
HER-STICK3/46/WW 46" long, 15 watt
$64.71
Add
HER-STICK3/PC
Manufacturer: Hera Lighting
Hera STICK3/PC [STICK3 system] power cable for Stick3-LED light system, connects from power driver to first light in series, 59'' long
$10.22
Add
HER-STICK3/CC__
Manufacturer: Hera Lighting
Hera HER-STICK3/CC2 [STICK3 system] connecting cable 2'' long, for Stick3-LED lights
Also:
HER-STICK3/CC12 12" long cable
HER-STICK3/CC39 39" long cable
$6.65
Add

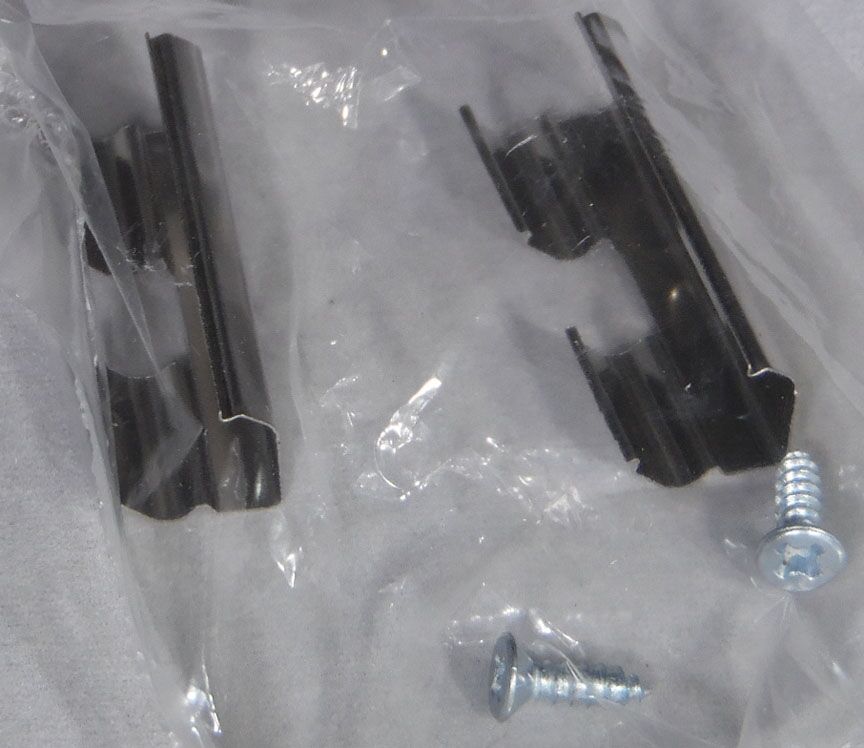

HER-STICK3/MC/45/SET
Manufacturer: Hera Lighting
Hera STICK3/MC/45/SET mounting clips for Stick3-LED lights, 45 degree mount, packaged in 2-pack
$2.98
Add

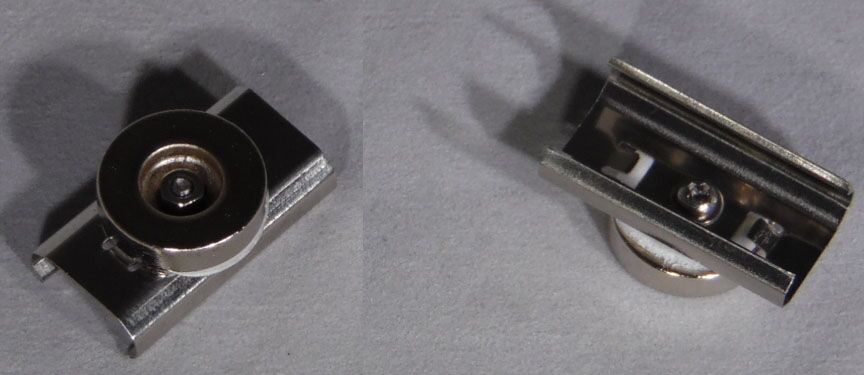

HER-STICK3/MC/MAGNET/H
Manufacturer: Hera Lighting
Hera STICK3/MC/MAGNET mounting clips for Stick3-LED lights, magnetic, packaged in 2-pack
$9.21
Add
Ordering Notes: (many of them)
The Stick3-LED involves some planning. The lights come in 8", 12", 24", 34" and 46" lengths. You can connect them end to end to make longer lights, and they overlap when connected, thus giving the impression of no gap. Up to 11.7 feet of lights (11 feet, 8 inches), mix and match sizes to reach that, can be powered from a single STICK3/PC power cable coming out of the terminal block on the driver. Drivers come in 6 watt, 30 watt, 75 watt, and a 96 watt. You can have multiple STICK3/PC power cables coming out of the same driver (30 watt or larger drivers) if you need to extend lights in multiple directions, as long as you do not exceed the total wattage of the driver. Power Drivers page

So you need to measure the lengths of your runs. If you need to extend past the underside of an upper cabinet to the next, and a light rail hangs down (that drop down piece of wood that extends lower than the cabinet bottom), you can drill through the light rail and use a connecting cable to continue power to the next light. If you connect an 24" light and a 34" light, you can make a 58" seemless light, or space them apart with a cable. Et cetera for other various lengths added together. When you have a long even straight line and you would like continuous light, you can create long strings up to 11 feet 8 inches. If you need to go longer than that, you would just start a second run of lights on the same directional line picking up where the first ended, but starting as a new line with a STICK3/PC.

For L or U shape kitchens, you can centralize your power driver and extend runs in multiple directions. This can save on using multiple drivers and trying to run a 98" power cable with or without an extension lead past your light runs. Extension connecting cables to extend the reach of the STICK3/PC power cable are shown on the drivers page. The KB12LEDCC connecting cables are used to extend the reach of the STICK3/PC power cables, but the KB12LEDCC cables are not used between lights. The STICK3/CC cables are used from light to light. STICK3/CC cables can connect to themselves to create longer cables.

The wattages for each light are shown above in the ordering blocks and also under Product Features. Add up the wattages of your planned interconnected lights, and then order the appropriate size power driver. You need one STICK3/PC per run of lights, with a maximum of 11.8 feet per power cable.

If planning on using the STICKPSDIM dimming module, note that it has a 48 watt maximum. You can run multiple STICKPSDIM dimming modules from the same driver as long as you keep the maximum wattage of the lights under the driver limit. Two STICKPSDIM can be controlled by a single DIMCONTROL with the aid of the Y-CABLE. All these dimming components are shown on the Power Drivers and Dimmers page. STICKPSDIM modules can also be controlled with 1-10V low voltage wall dimming controllers.

The Stick3-LED lights can be used in conjunction with any of Hera's spotlight LED lights that run from the PS24V drivers. The spotlights connect into the terminal block on the driver directly. The Stick3-LED light must use the STICK3/PC. That power cable has the jack connection on it to connect into the driver, and then the Stick3 connecting end to attach to the input end of the first light. Single light runs are fine too. You can have a driver, power cable, and one Stick3-LED light on a run. Sometimes that is all you need for a small area such as the cubby on a hutch desk.

When Interconnecting these lights on display shelves: you can run them across shelves and at multiple levels, and have them continuously connect via connecting cables. You will need multiple drivers for larger display areas. These lights are great under glass shelves too. They can be mounted with two-way tape or with mounting clips. Magnetic mounting clips are for attaching them to coolers and other magnetic metal surfaces that you cannot drill into. Stick3-LED lights can be mounted both horizontally and vertically.

The lights are okay to mount in a recessed channel if you do not wish them to protrude downward from the underside of your wood surface. When you look at the extended product images in the shopping cart cards above, you can see how the frosted lens will technically allow light to project about 180 degrees. When recessed, you will limit that and focus light more downward, instead of downward and outward. Please keep that in mind as to not recess them too deeply. 3/8" to 1/2" is the advised recessed depth of your channel when not surface mounting.

We know questions generally arise concerning these lights. You are welcome to e-mail or call us.

The only spec diagram Hera has created for the Stick3-LED just shows how it measures 1/2" x 1/2".

The Stick3-LED lights are low voltage and must run from the 24 volt constant voltage power drivers. There are several choices of drivers, the PS24V drivers are those you want to select from, generally the 30 watt and 75 watt are the most common choices. Lights are also dimmable with select dimming accessories. Switches and extension cables are also shown on that page (extension cables to preceed the STICK3/PC). There are many options shown on that web page to keep this page from becoming too long ... and cluttered. Please go to LED Power Drivers and Dimmers to make your selections to go with the Stick3-LED lights.
Additional Length and Lumen info:
  • STICK3/8 is 7-7/8" long and 260 lumen
  • STICK3/12 is 11-13/16" long and 420 lumen
  • STICK3/24 is 22-7/16" long and 840 lumen
  • STICK3/34 is 34-1/4" long and 1260 lumen
  • STICK3/46 is 44-7/8" long and 1680 lumen

Consider this, if you connect 8 of the 12" lights together, this technically would be 94.5 inches. If you connect two of the 46" lights together, you get 89.75 inches. Sometimes using more of the smaller lengths gets you a more tailored run length.
