Big6-2-LED Bright Swivel Spotlight

Hera Lighting section index

Large Recessed Swivel Spotlight for Soffits

The Big6/2-LED spotlight was developed for applications where very high levels of light are needed or desired. It is 7.2 watts with an omnidirectional swivel function. This light is the one to use for large display cases to light up bigger areas and display your products well. The light does required a deeper recess to fit into, and can be mounted into soffits.

Product Features:

  • Energy efficient at 7.2 watts
  • Omnidirectional swivel with a 3" required recess depth
  • Available in 3000K warm white and 6000K cool white
  • Stainless Steel or a White finish options
  • Estimated 50,000 hours of useable life (6 years if on 24/7, but consider, if on 8 hours a day 5 days a week, that is approx. 24 years)
  • Efficacy: 102 lm/W for warm white and 119 lm/W for cool white
  • CRI >80 with reduced glare factor
  • Attached 79" connecting lead with plug and play jack
  • For use with 350 mA constant current driver (one can work from PSLED/10)
  • Dimmable if used on PSLED/DIM/S driver (max. 2 lights per this driver)
HER-BIG6/2/SS/
Manufacturer: Hera Lighting
Hera HER-BIG6/2/SS/CW Big6 version 2 LED swivel light, 6 high power LED's, 7.2 watt, cool white, attached 79" cable, stainless steel - requires PSLED power driver
Also: HER-BIG6/2/SS/WW warm white
$154.54
Add
HER-BIG6/2/WH/
Manufacturer: Hera Lighting
Hera HER-BIG6/2/WH/CW Big6 version 2 LED swivel light, 6 high power LED's, 7.2 watt, cool white, attached 79" cable, white finish - requires PSLED power driver
Also: HER-BIG6/2/WH/WW warm white
$154.54
Add
HER-PSLED/10
Hera LED Power Drivers and Dimmers
Hera PSLED/10 power supply for 24V LED lights, 350 mA constant current with 79'' cord length, 10 watt (but can support up to 10.8 watts)
$52.71
Add
HER-PSLED/DIM/S
Hera LED Power Drivers and Dimmers
Hera PSLED/DIM/S dimmable power supply for LED lights, 350 mA constant current with 79'' cable, 18 watt (dual 9 watt leads) - requires DIMCONTROL to be dimmable, works at full output without controller
$101.37
Add
Hera has produced a nice video on how to retrofit the Big6/2-LED into the old Big6 larger casing. Big6/2-LED tutorial video.

Ordering Note:
The PSLED/10 driver will allow one Big6/2-LED to work on this driver. If you desire a dimming option for this light, then you need to use the PSLED/DIM/S driver which is a dual 9 watt, and can support up to two lights.

For the DIMCONTROL dimming controller or extension cables for this light, please see our LED Power Drivers and Dimmers web page.

On the extended pictures shown when clicking on the stainless steel color light above, it will show you the back of the light. It is deep and does require a 3" space to recess into, and having a little more space will allow for better heat dissipation. The picture of the white light has an add on picture showing the omnidirectional swivel function. Some of Hera's LED lights that say they have a swivel function actually just tilt foward or back by up to 20 degrees. The Big6/2-LED light has a true swivel so you can aim the bulk of the light output in the direction you would like.

If you are upgrading from the first version of the Big6-LED, the Big6/2 can retrofit inside of the canister of the larger Big6 version one. The Big6/2 is designed to work with the PSLED/10 or PSLED/DIM/S. The Big6 version one had come with its own special LED driver, that would need to be replaced also.  For new installations, order either of the PSLED version drivers with the Big6/2 lights.

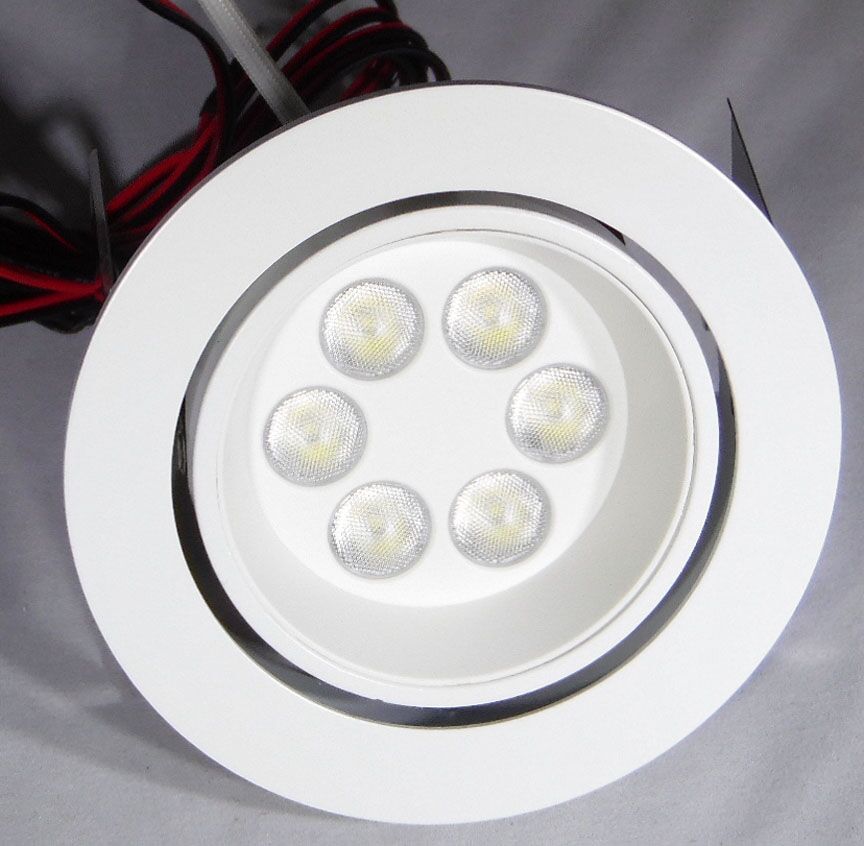

Hera Big6-2-LED recessed swivel spotlight
The Big6/2-LED light requires a 3-1/2" diameter hole to fit into, and you should have at least 3" of depth. This is not the typical under cabinet light, it is a display light. It can be used in drop down ceilings, but its purpose is more suited for display cases, and product showcasing. The 6000K rating of the cool white version casts a clean invisible light without an added hue. For smaller display lights with a tilt function, please see these two Hera selections: SR45-LED and SR68-LED
